Fairground Weather Alert System
A CASE STUDY
Fairground Weather Alert System
THE CHALLENGE
Erie County Fair is the fourth largest county fair in North America, located in Hamburg, NY, and often drawing over one million in attendance. Garry Steiger, the program coordinator, contacted Visiplex looking for a weather alert and Public Address system to be able to communicate with all visitors during emergency situations and regular daily activities. The main requirements were: the system needed to provide full voice communication to indoor and outdoor areas, cover all fairground area, be expandable so that more speakers could be added later, remote access via dial-in phone, and easy enough that it could be maintained by the facility electrician.
THE SOLUTION

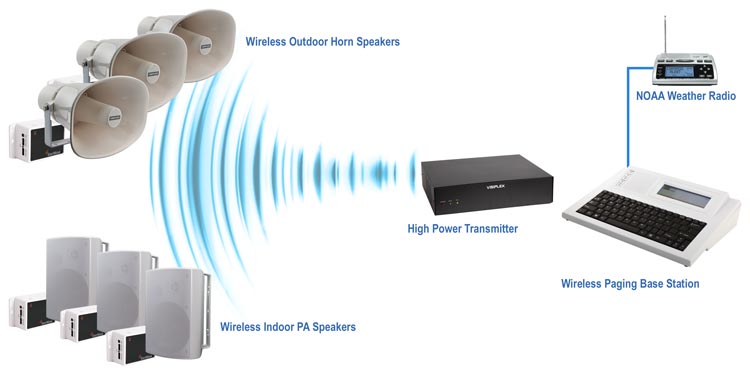

Visiplex’s solution to meet the requirements of Erie County Fair consisted of: VS4810 wireless paging base station for the control room, VS101-40 high-power transmitter for complete facility-wide RF coverage, 18 VNS2210 indoor PA speaker controllers, each driving one or two VNS2083 high power PA wall speakers for full indoors voice coverage, 15 VNS2200 outdoor PA speaker controllers, each driving a VNS2088 high-power horn speaker to provide facility-wide outdoor voice messaging.
The VS4810 base station included a VS3042 NOAA weather radio interface, to provide automated local weather warning announcements to play over the wireless PA system, instructing visitors to seek indoor shelter. In addition the VS4820 included an integrated VS3003 option, which provides dial-in telephone access to broadcast daily event schedule announcements, public serving messaging (lost child announcements) and instant, overhead paging capabilities.
The proposed system is fully wireless, eliminating costly wiring between different fairground areas, and needing only an AC outlet for each controller to operate. The total cost of the complete system was approximately $20,000.
THE RESULTS
Local NOAA severe weather alerts are automatically played over indoor/outdoor wireless PA speakers throughout the fairground area.
Daily schedule and security related announcements can be initiated from the paging base station or remotely over the phone.
The system is easy to install and fully maintained by local fairground staff.
Completely expandable system allowing for indoor and outdoor PA speakers to be easily added or relocated.
