The VPR-04 Wireless Data Receiver is designed to monitor activity of wireless emergency call buttons, wall stations and panic buttons, providing real time information to local paging base station for data archiving or additional event processing and activation.
Wireless Data Receiver – VPR-04
$445.00
Out of stock
Out of stock
Description

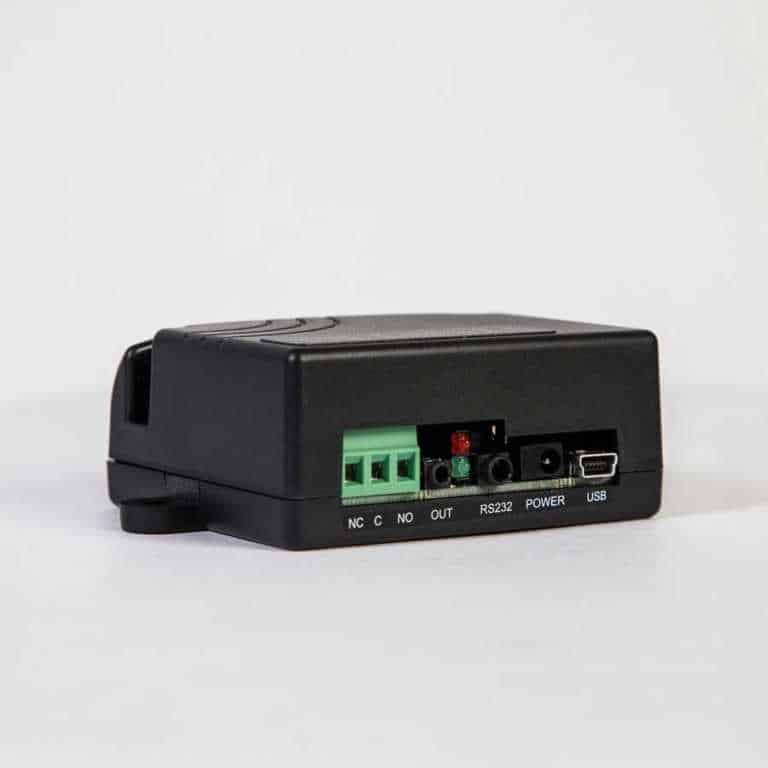

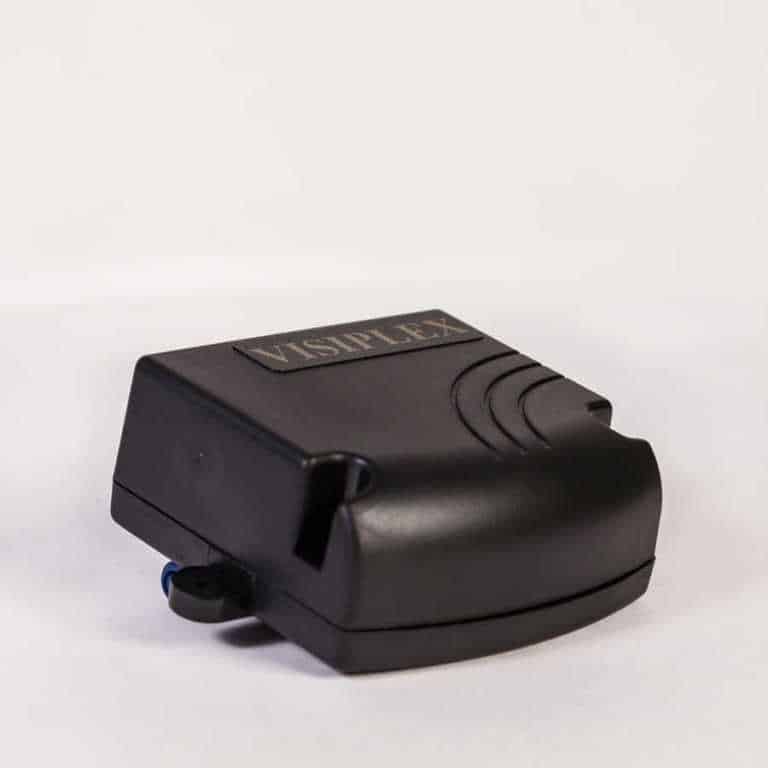

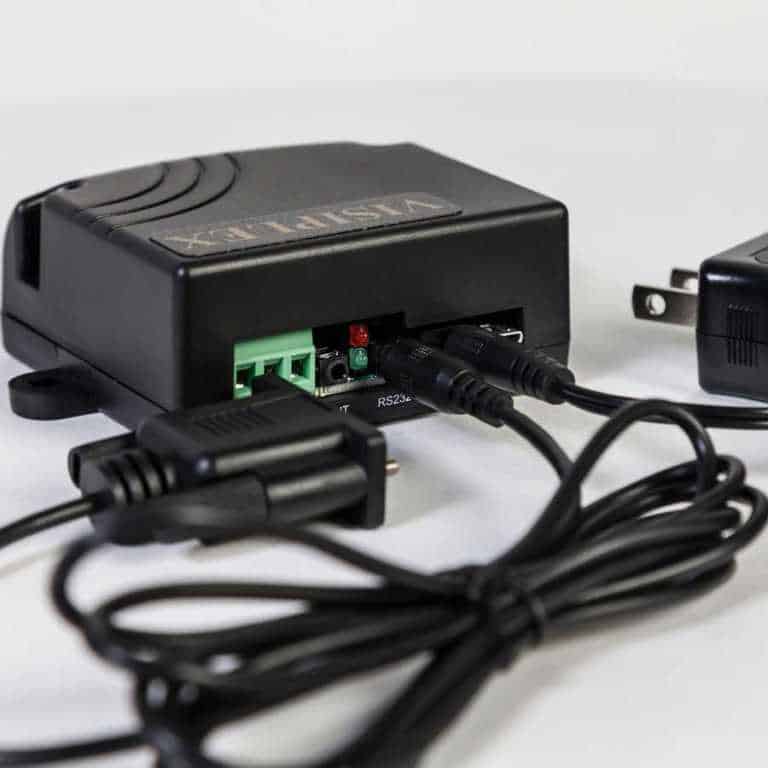

The VPR-04 is a wireless data receiver that provides real time monitoring of call activities from emergency call buttons, panic buttons and wall stations. This call activity data can be used by a paging base station, such as the VS4810 or VNS5100, to generate automated text, audio or visual alerts to pagers, alphanumeric displays, wireless speakers, strobe lights, e-mail and telephone subscribers. In addition, the attached base station can use the received from the wireless data receiver for call events archiving and paging activity storage. VPR-04 wireless data receiver can be programmed to monitor paging and call activities in the UHF, VHF and 900MHz to provide full RF spectrum coverage and wireless data monitoring capabilities.
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 8 × 8 × 4 in |
| Product Dimensions | 3.85" x 2.85" x 1.3" (W x H x D) |
| Product Weight | 1.15 lbs. |
| Power | 5V DC / 0.5 A (Using 120-240V AC) |
| Color | Black |
| Frame | Polycarbonate |
| Operating Temperature | 32° – 120°F |
| Receiver Sensitivity | -119 dBm |
| Mounting | Mounting Leads for Vertical or Horizontal Installation |
| Current Draw | 80mA |
| Frequency | VHF (148 – 174 MHz), UHF (400 – 470 MHz) and 902 – 930 MHz |
| Interface | RS-232 Data Port, USB Programming port |
| Paging Format | POCSAG, Narrow Band |
| Activation Codes | 8 programming and activation capecodes |
| Data Baud Rate | 512, 1200 and 2400BPS |
| Limited Warranty | One Year Parts and Labor |
