The VS101-100 High-Power Radio Transmitter is designed for voice and data paging applications. The VS101-100 contains a 100 Watt synthesized UHF or VHF transmitter with a highly sensitive receiver for channel monitoring. The VS101-100 comes with an integrated power supply to support stable operation.

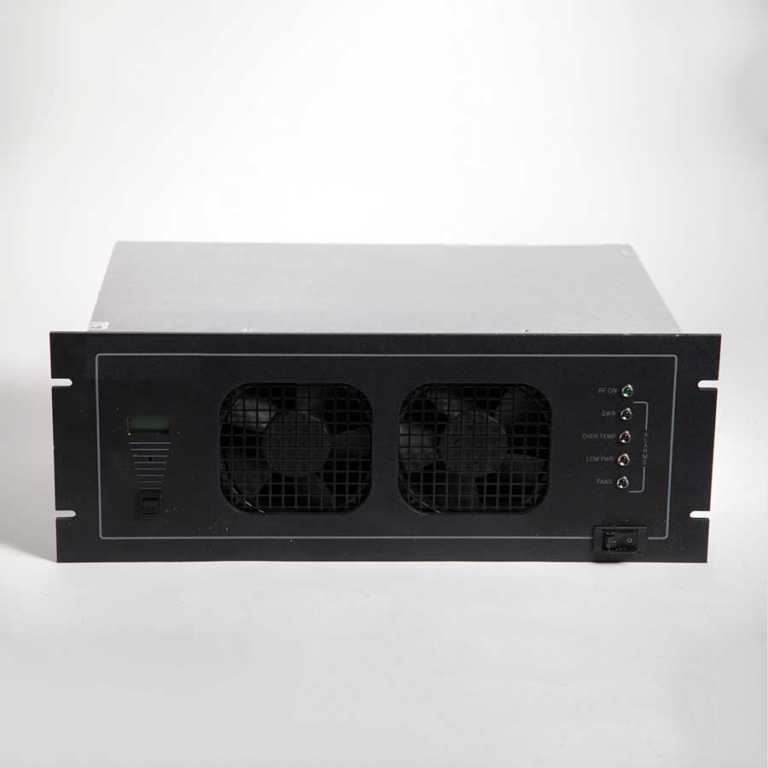

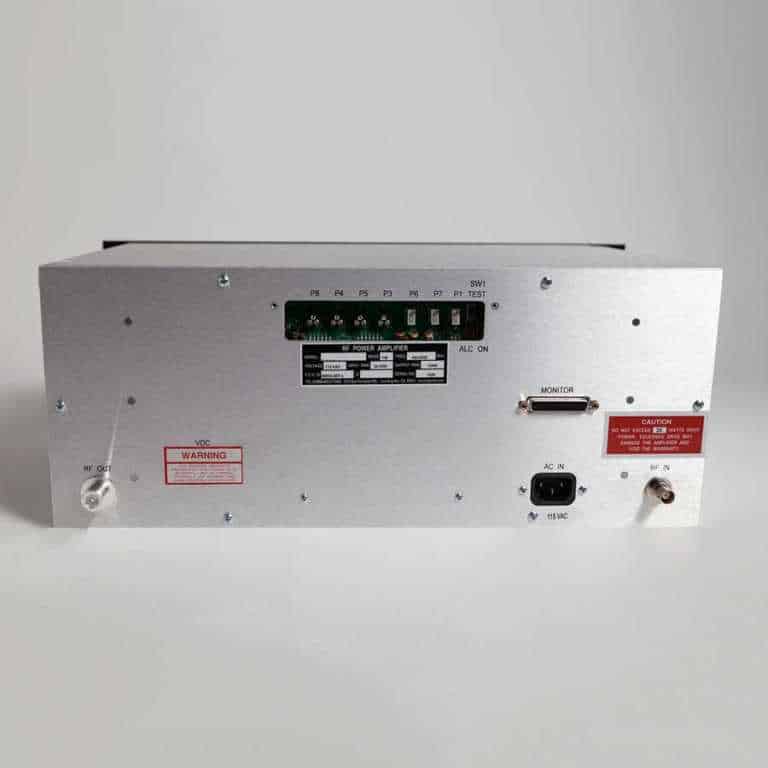

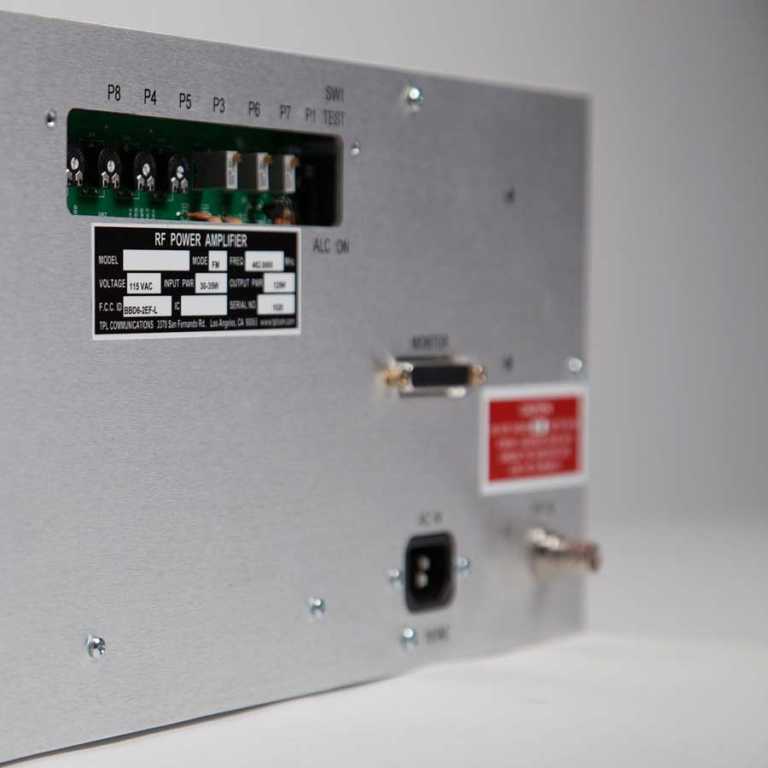

VS101-100 High Power Radio Transmitter
$6,485.00
Out of stock
Out of stock
Description
The VS101-100 is a High Power Radio Transmitter that is specifically designed for two-way voice communications and digital data paging and messaging applications.
The VS101-100 high power radio transmitter can deliver up to 100 Watts of RF power, making it an ideal solution for large facilities like medical centers, college campuses, manufacturing plants, industrial complexes, office buildings, shopping malls, etc.
As part of Visiplex’s Radio Transmitters product line, the VS101-100 radio transmitter can be used in applications such as wireless Public Address messaging, wireless two-way intercom communications, time synchronization, pocket pager messaging, emergency alert notifications and others.
Additional information
| Weight | 24 lbs |
|---|---|
| Dimensions | 26 × 18 × 12 in |
| Product Dimensions | 19" x 24" x 16.5" (W x H x D) |
| Product Weight | 60 lbs. |
| Power | 90-240V AC 50/60Hz 300Watt |
| Color | Black |
| Operating Temperature | 10° – 140°F |
| Output Power | 100 Watts |
| RF Connector | Type N Jack |
| Receiver Sensitivity | <110dBm |
| Selectivity | 50dB |
| Input / Output Impedance | 50 Ohm |
| Modulation | FM |
| Frequency Range | VHF (148 – 174 MHz), UHF (400 – 470 MHz) |
| Channel Spacing | 12.5 KHz – Narrow Band |
| Stability | ± 2.5 ppm |
| Data Format | Digital 512-2400 BPS Analog – 100Hz – 3.6KHz |

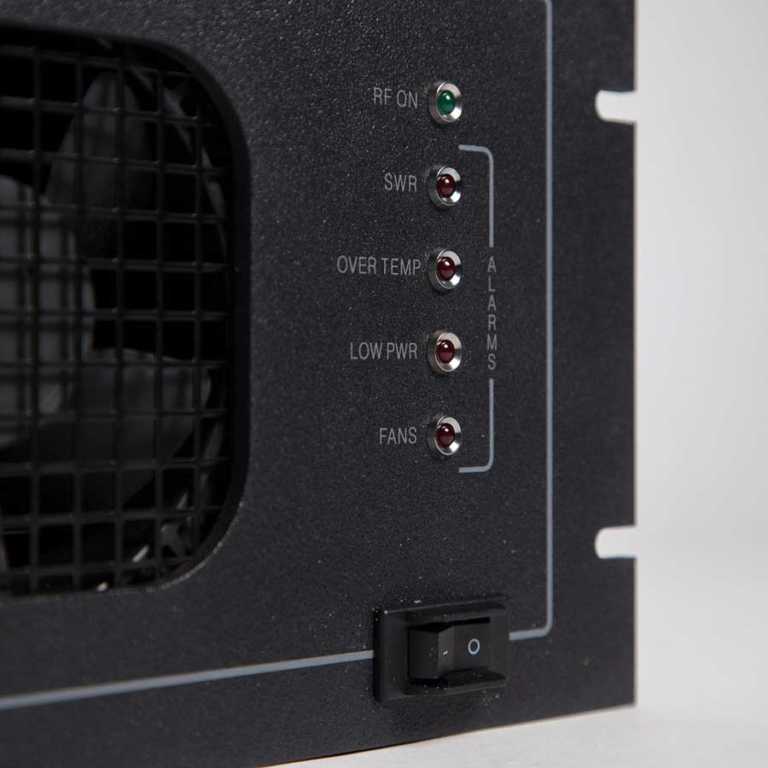

| Enclosure | Durable Metal Case with LED power, PTT and Data Indicators |
| Limited Warranty | One Year Parts and Labor |
