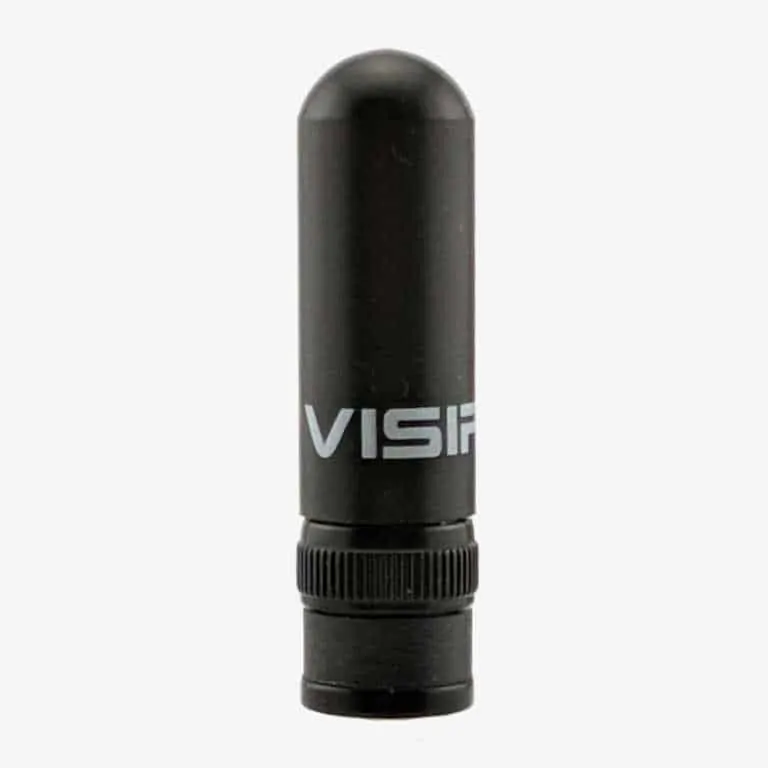

Rubber Duck Antenna – VNS2255

$15.00

Out of stock

The VNS2255 Rubber Duck Antenna is designed to be used with VNS22xx wireless controllers for wireless paging applications. The VNS2255 is designed to increase RF signal reception and/or improve transmit signal coverage.


  • UHF 450-470MHz Frequency Band
  • 0 dB Gain
  • Maximum Power of 10W
  • Compact Design and Easy Installation

Out of stock

SKU: VNS2255 Category:

Description

The VNS2255 is a compact Rubber Duck Antenna that is specifically designed for Visiplex wireless controllers in indoor and outdoor radio paging applications. This antenna comes with a BNC connector, making it ideal for mobile uses and easy indoor/outdoor installations.

The VNS2255 Rubber Duck Antenna is designed to increase RF signal reception and/or improve transmit signal coverage.

The VNS2255 rubber duck antenna is a rugged with wide vertical bandwidth, 0 dB gain and is designed for operation in all indoor conditions.

The VNS2255 Antenna is optimized to be used with most of Visiplex RF paging base stations, wireless intercoms & speakers, transmitters and voice & data repeaters.

Product Data Sheet

Additional information

Weight 1 lbs
Dimensions 3 × 6 × 3 in
Product Dimensions

0.50" x 1.75" (W x H)

Product Weight

0.38 lb

Maximum Power

4 Watts

Operating Temperature

-40º – 140ºF

Material

Polyurethane, Black

Frequency Range

UHF: 400-470 MHz

Gain

0 dB

Wave

1/2 Wave

Polarization

Vertical

VSWR

< 1.5 : 1

Impedance

50 Ohm

Termination

BNC Male Connector

Radiation

Omni

Limited Warranty

One Year Parts and Labor
