The VS1810 Paging Alarm Controller is designed to monitor the status of hard-wired alarm inputs and issue a pre-programmed text message for every status change.
Digital Alarm Controller – VS1810
$895.00
Out of stock
Out of stock
Description

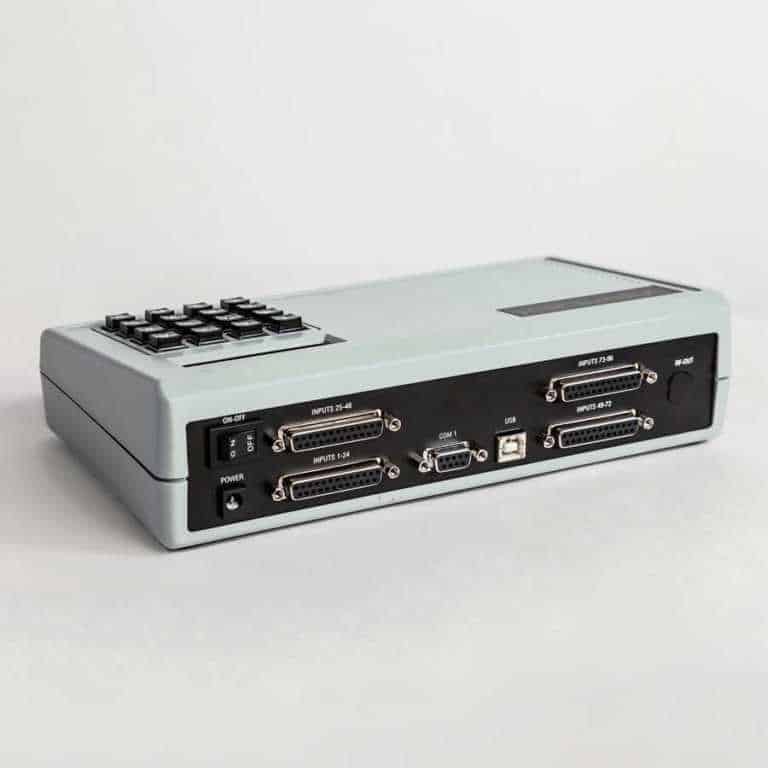

The VS1810 Paging Alarm Controller is designed to monitor the status of hard-wired alarm inputs and issue a pre-programmed text message. The unit comes with four 24 input connectors totaling 96 alarm inputs that can be configured to monitor activity or changes in input voltage level.
Each alarm input in the VS1810 alarm controller module, can be configured individually to a specific text message. During alarm monitoring and an input state change, the VS1810 sends serial data to the main wireless paging controller, such as the VS4800 or VNS5100, generating automated text, audio or visual alerts to pagers, alphanumeric displays, speakers, strobe lights, e-mail and telephone subscribers.
Up to 8 VS1810 alarm paging modules totaling 768 alarm inputs can be monitored by one paging controller.
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 14 × 14 × 6 in |
| Dimensions | 9.75” x 5.5” x 2.5” (W x H x D) |
| Weight | 2.35 lbs. |
| Power | 12V DC / 3A (Using 100-240V AC) |
| Operating Temperature | 32° – 104°F |
| Humidity | 10% – 65% |
| Software | PC Software for Programming and Unit Database Backup |
| Input Impedance | 47K Ohms |
| Alarm Input Type | Normally Open or Normally Closed, Voltage Level |
| Serial Ports | 1 |
| RS232 Protocols | Visiplex |
| Limited Warranty | One Year Parts and Labor |
