The VS1502 Wireless LED Message Display is designed with easy time and message viewing to accommodate a wide variety of wireless messaging applications.
VS1502 – LED Message Display
$321.00
Out of stock
Out of stock
Description

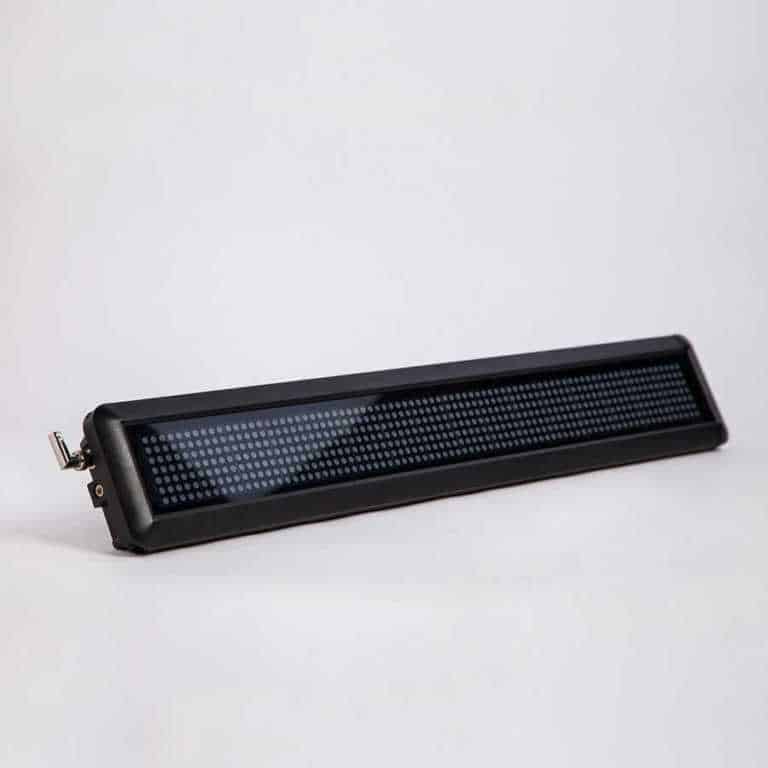

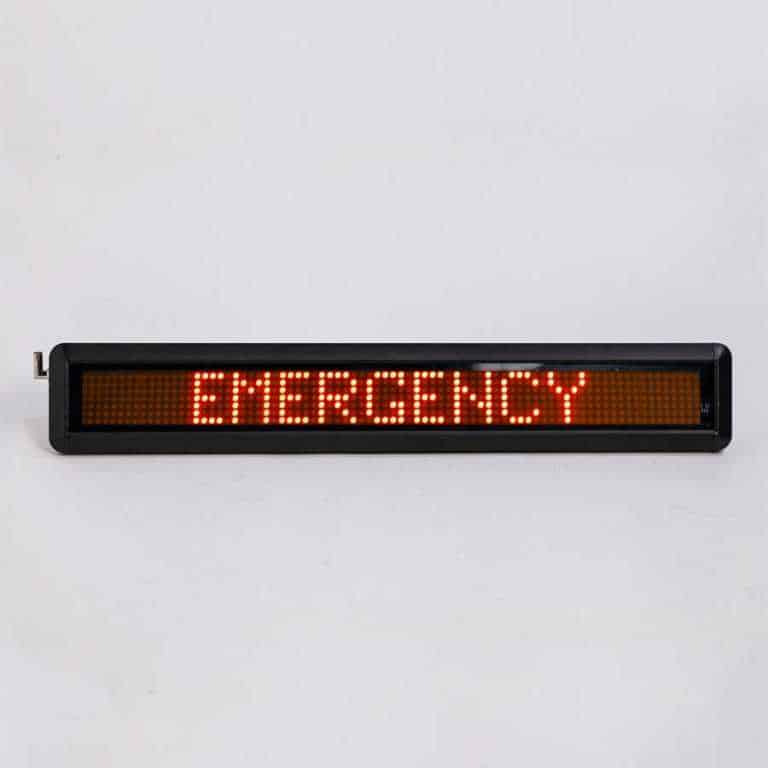

The VS1502 Wireless LED Message Display is a One-Line Wireless LED alphanumeric display that provides easy message and time viewing to accommodate a wide variety of applications such as public text messaging, alerts and time display.
The VS1502 wireless LED message display can be set into digital clock mode where it is capable of receiving wireless time synchronization signal from most Visiplex Time/Paging Controllers for accurate time display when no active messages are displayed.
The VS1502 supports 6 activation codes (ID’s) for individual activation or membership activation in 5 separate groups. Creating groups provides the ability to activate multiple devices using a single transmission from a main wireless paging controller, such as the VS4810 or VNS5100.
The VS1502 LED message display board is part of Visiplex wireless LED message board displays and digital clocks to match many digital time and messaging display applications. This selection of wireless LED digital clocks and displays come with a variety of LED size, colors and formats to provide easy time and data viewing to accommodate a wide variety of application environments.
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 36 × 8 × 6 in |
| Product Dimensions | 26.72" x 4.3" x 1.6" (W x H x D) |
| Product Weight | 4.15 lbs. |
| Power | 5V DC / 3 A (Using 120-240V AC) |
| Frames & Lens | Black Metal Frame, Acrylic Lens |
| Operating Temperature | 32° – 120°F |
| Display Format | One Line, Up to 16 Characters |
| Character Size & Color | 2.1" High, Red |
| Viewing Distance | 100 ft. |
| Humidity | 0% – 95%, Non-Condensing |
| Frequency | VHF (148 – 174 MHz), UHF (400 – 470 MHz) |
| Paging Format | POCSAG, Narrow Band |
| Data Baud Rate | 512 or 1200 BPS |
| Receiver Sensitivity | 10u V/M |
| Activation Codes | 6 |
| Limited Warranty | One Year Parts and Labor |
