The WPRP-5 is a Wireless Data Repeater that provides extended voice/data RF coverage to locations where the main transmitter signal is too weak or can not be received. The WPRP-5 includes a sensitive built-in receiver, power supply and external antenna.
Wireless Paging Repeater, Low-Power, Desktop – WPRP-5
$995.00
Out of stock
Out of stock
Description
The WPRP-5 is a Wireless Repeater that provides extended RF data coverage to locations where the main paging transmitter signal is too weak or can’t be received. The WPRP-5 is capable of handling voice and data paging formats, with the ability to receive and transmit on two different frequency bands.
As part of Visiplex’s Paging Transmitters product line, the WPRP-5 can be used as a wireless repeater to improve paging coverage in applications such as wireless Public Address messaging, wireless two-way intercom communications, time synchronization, emergency alert and others.
The WPRP-5 Wireless Repeater comes with a built-in 5 Watt transmitter, radio receiver, antenna, repeater control logic and a programming port for configuration and data monitoring.
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 18 × 16 × 6 in |
| Product Dimensions | 14" x 11.5" x 3.5" (W x H x D) |
| Product Weight | 9.5 lbs. |
| Power | 90-240V AC 50/60Hz 25W |
| Color | Black |
| Operating Temperature | 10° – 140°F |
| Output Power | 2W |

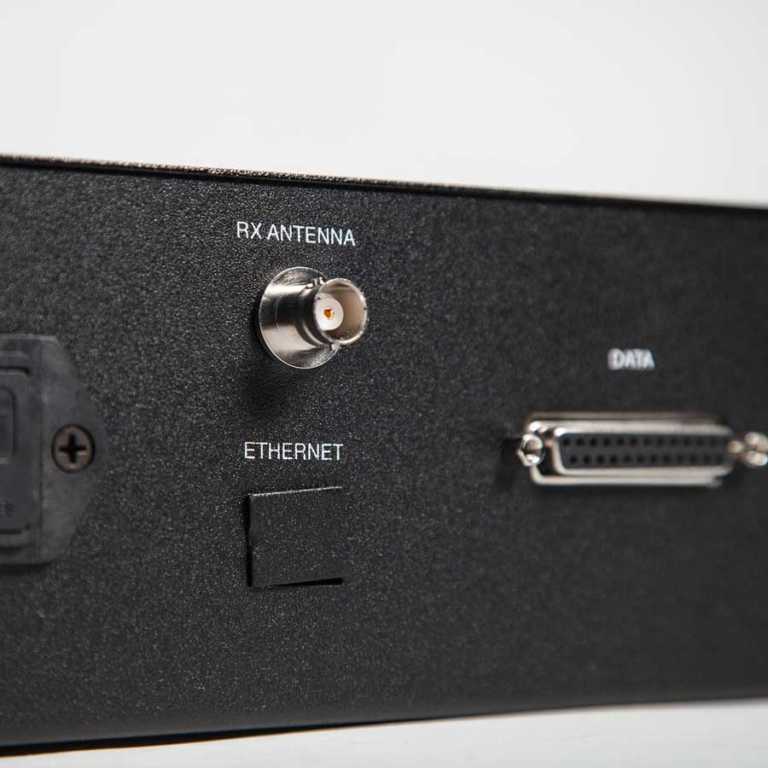

| RF Connector | Type N Jack (Complementary BNC Female to N Male Adapter Provided if Required). |
| Selectivity | 50dB |
| Receiver Sensitivity | <110dBm |
| Input / Output Impedance | 50 Ohm |
| Modulation | FM |
| Frequency Range | VHF (148 – 174 MHz), UHF (400 – 470 MHz) |
| Channel Spacing | 12.5 KHz – Narrow Band |
| Stability | ± 2.5 ppm |
| Data Format | Digital 512-2400 BPS Analog – 100Hz – 3.6KHz |

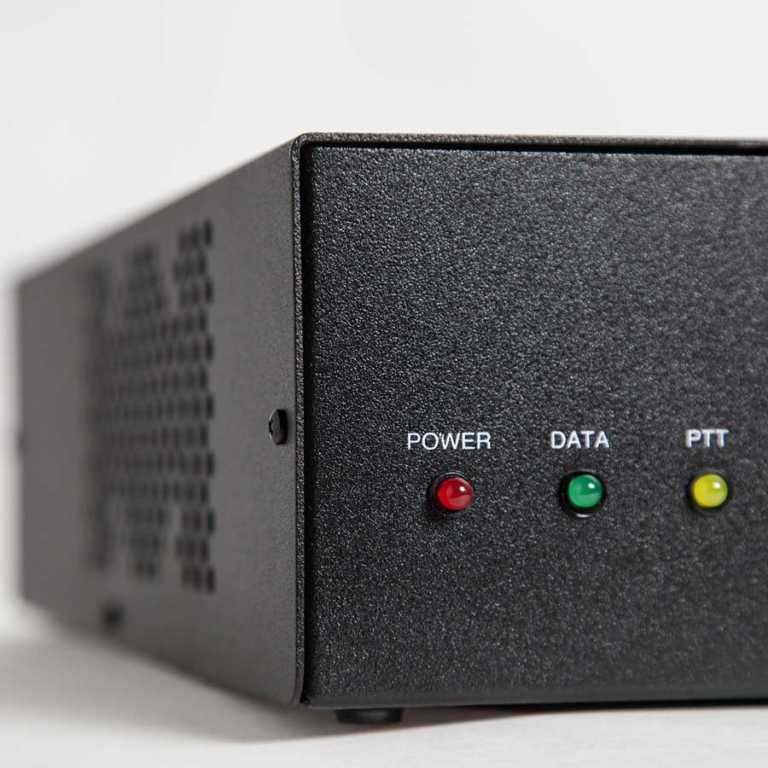

| Enclosure | Durable Metal Case with LED Power, PTT and Data Indicators. |
| Limited Warranty | One Year Parts and Labor |
